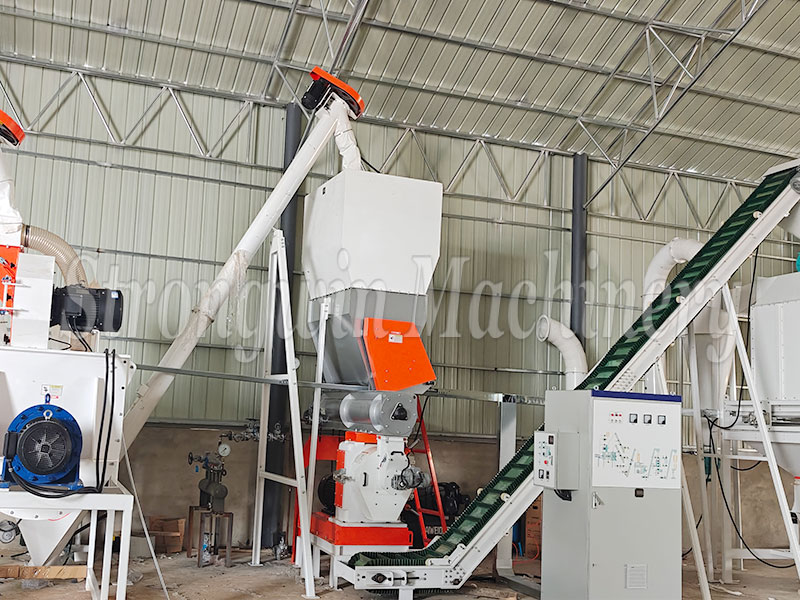

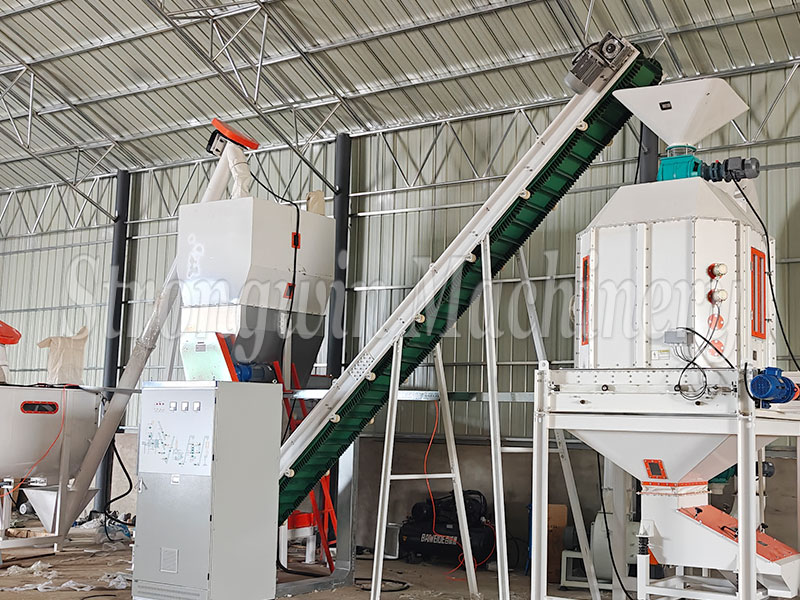

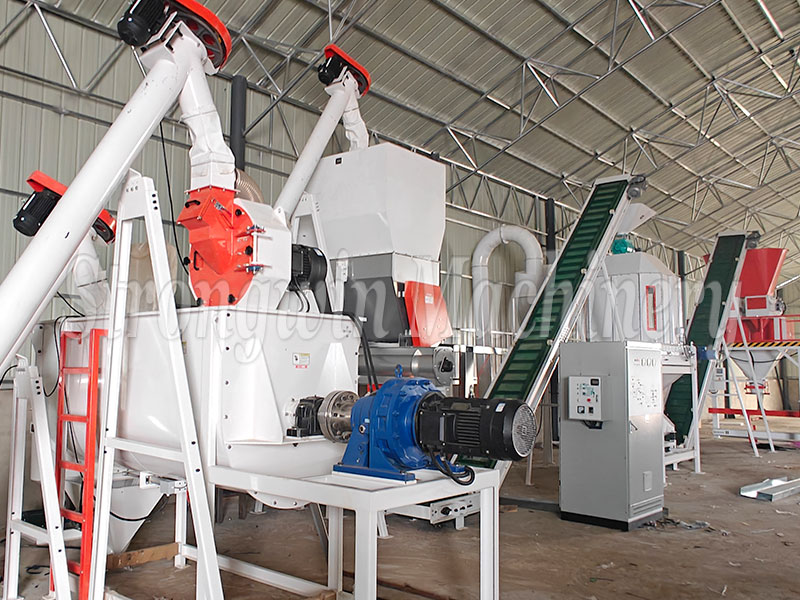

2-3t/h Poultry Feed Pellet Plant

Model
Poultry Feed Production Plant
Capacity
2-3t/h
Type
Fully automatic and semi-automatic
Application
For producing poultry feed pellet, such as chicken,duck,bird,etc.
Pellet forming rate
98%
bearing
SKF
Share With :
Description
Features
Parameters
Inquiry

Description

2-3t/h Chicken Feed Pellet Plant
Nowadays, intensive management of chicken feeding industries can save cost and realize maximum benefit. How to produce high quality feed and how to make animals digest the feed efficiently are what chicken farmers concerns all the time. Complete chicken feed pellet plant has been developed by Strongwin with an objective of providing chicken with a hygienic, nutritionally balanced and easily digestible diet.
Compared with feed mash or traditional fodder, chicken feed pellets are clearer, healthier and more convenient to transport. Feed pellets can provide condensed nutrition for livestock. Due to these advantages, feed pellet milling is getting more and more popular in recent years. Strongwin Feed Manufacturing Machinery can make durable chicken feed pellets with a lustrous surface for you.

Efficient
Stable
low noise
High Yield
Low consumption
Mature Technology
Details of the Complete Animal Feed Pellet Line

1.Raw materials for chicken feed pelletizing processing
Materials for feed can be soybeans, soybean meal,alfalfa, corn, fish meal, amino acid, fusel meal, additives, whey powder, oil, meat and bone meal, corn, sweet sorghum, etc.
2.Hammer Crusher & Mixer:
Adopts regrinding crushing technology, widen the screen in 360°,the materials can be crushed averagely. Coefficient of variation is less than 5%, the mixing time is 5 minutes, then the materials can be discharged form one side. There is no dead corner when mixing, and this machine is easy to maintenance..
3. Feed Pelletizing Process: Ring Die Chicken Feed Pellet Mill
Chicken feed pellet mill is the main equipment of the whole feed production line. Compared with flat die feed pellet mill, ring die chicken feed pelletizer is more efficient and suitable for high quality chicken feed pellets production in large farms or feed pellets factory. Built-in steam collection conditioner can mix and cook materials fully and uniformly to meet special needs and ensure high quality of final chicken feed pellets.

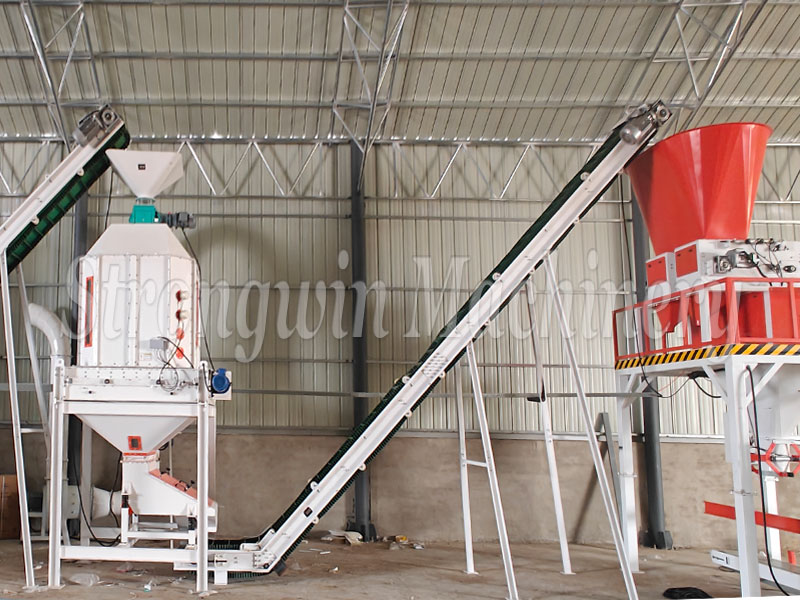

4. Feed Pellet Cooling Process:Chicks Feed Pellets Cooler
After this process, you can get finished chicken feed pellets with rich nutrition, good palatability and high digestibility. Chicken feed pellets cooler and packing machine are available for your choice to get top feed pellets making experience. Moreover, to cater for the special requirements of our clients, we can also customize different capacity poultry feed pellets production line.
5. Feed Pellet Crushing Process:Chicks Feed Pellets Crumbler Different poultry, livestock or aquatic feed pellets are with different sizes. Some big ones should be crushed into small ones. Roll type feed pellet crumbler is just the equipment for feed pellet crushing. Double-roll feed pellet crumbler is suitable for crushing poultry feed, such as chicken feed, duck feed and goose feed etc. Three-roll feed pellet crumbler is suitable to crush aquatic feed including fish feed and shrimp feed etc.

The machine can make pellets for poultry, chicken, duck,bird and so on.

mainly sinking pellets,because the density of the pellets are big, if you want to make floating feed,so you need to buy one more extruder.
A

After installation and adjust,we will training our customer's work how to operate;
B

Training worker how to maintain and protect
C

According features,we will make a complete maintain rules for you, contains how to maintain,when to maintain,who maintain)
D

Our company after-sale department will call you at regular intervals,ask if maintain and give advice.

Features

Feed Pellet Mill Firm Structure SZLH320 feed pellet machinery

1

Machine model: America CPM
2

Electric motor: Germany SIEMENS
3

Pellet machine bearing: Switzerland SKF
4

Full stainless steel conditioner,ensure the high quality of pellet feed.
5

We can customize double or three layer conditioner for clients.


Super quality of Henan Strongwin Feed Pellet Mill



Material thickness of main equipment is more than feed machinery standard 2mm;
The weight is heavier than feed machinery 20%.
Output higher 20%;
Feed rate of return increase by 3-5%.

Parameters

Technical Parameters of main equipments for 2-3t/h poultry feed pellet production line
No. Product type Power(KW)
1.Raw materials receiving and crushing and mixing system
101 Screw Conveyor TSLL16 2.2
102 Hammer Crusher SFPZ56*20 15
103 Ribbon Mixer SHW1.0 7.5
2.Pelleting system
201 Bucket Elevator TDTG36/18 2.2
204 Pellet Machine(include control box) SZLH320 37
3.Cooling system
303 Airlock GFY250 0.75
304 Counter Flow Cooler SKLN11 0.75
305 Air Blower 4-72-4A 5.50
308 Pellet crusher SSLG15*80 5.5
309 Manual Three-way SD20*20
4.Auxiliary System
402 Rotary Screener SFJH80*2d 1.5
5.Auxiliary System
601 Boiler
