Double SZLH420 Feed Pellet Production Line 15-20t/h

Model
Animal Feed Production Line
Capacity
15-20t/h
Type
Automatic or semi-automatic
Application
For producing animal feed, such as chickens, bird, ducks, pigs, etc.
Motor
Siemens
conditioner
304 stainless steel plates
Share With :
Description
Features
Parameters
Inquiry

Description

15-20t/h Feed Pellet Production Line
This animal feed pellet production line can be used for processing livestock, poultry and aquatic feed pellets, which is specially suitable for big feed factory, breed farm. It has the better raw material versatility, which can be suitable for pelletizing many kinds of raw material, such as corn, broom corn, wheat, beans, oil seed meal and other materials . And also, this manufacturing plant for animal feed has the features of low energy consumption and high production efficiency for larger profits. We provide free charge of installation, and training, factory designing, and timely after-sale service.
Efficient
Stable
Low Consumption
Mature Technology
Profitable
Easy Maintenance

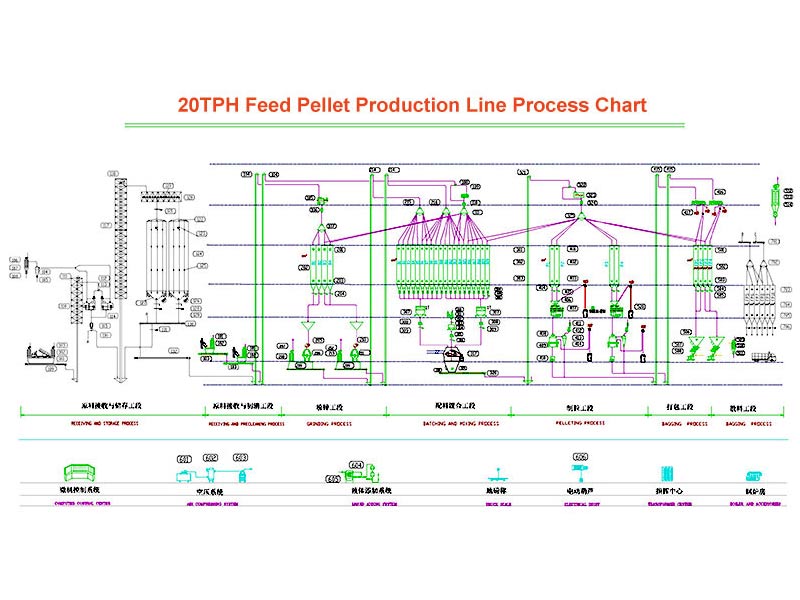

Production process of Animal Feed Production Line

Hammer Mil: Crush the material into small particles suitable for pellet making.
Mixer:Mix different raw material discharged by the batching scale together evennessly.

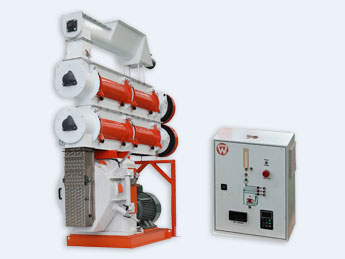

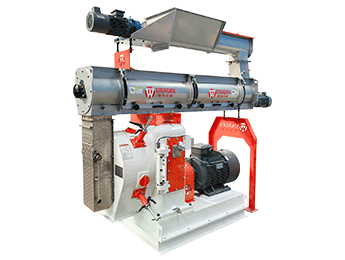

Pellet Machine:press the mixed well material into feed pellets,
Cooling Machine:For cooling the final pellets to normal room temperature.
Pellet Crumbling Machine:Crumbling the final feed pellets to small pieces(small animal needs).
The end of process in every plant is bagging also called packing. After screening the finished products are filled in to bags.
Application

Livestock feed pellet production line makes 2-8 mm diameter animal feed pellets. Such as 2-4mm diameter chick feed pellets and pig feed pellets.2-5mm rabbit feed pellet, 4-8mm cattle or sheep feed pellets. The last pellet length can be adjusted.
A

After installation and adjust,we will training our customer's work how to operate;
B

Training worker how to maintain and protect.
C

According features,we will make a complete maintain rules for you, contains how to maintain,when to maintain,who maintain
D

Our company after-sale department will call you at regular intervals,ask if maintain and give advice.

Features

Why to Choose Animal Feed Production Line?

1

Full automation of the complete production line
2

Manufacturing according to internationally advanced technology standard;
3

Gear driving system, with good transmission rate, stable and reliable performance and low noise;
4

Raw material contacting parts are made by stainless steel;


Super quality of Henan Strongwin Animal Feed Production Machine



Material thickness of main equipment is more than feed machinery standard 2mm;
The weight is heavier than feed machinery 20%.
Output higher 20%;
Feed rate of return increase by 3-5%.

Parameters

20 T/H Animal Feed Pellet Production Line
No. Product name Model Power(kw)
1. material receiving section
105 granule material clean sieve SCY80 0.75
106 permanent magnetic TXCT25
2. material grinding section
205 Impeller feeder SYLW3 1.50
206       Tear-circle hammer mill           SDH-ZW50C         132
213 pulse dust collector TBLFa.42
3. batching and mixing section
313 Double shaft high efficient mixer SSHJ.2     18.5
316   Double shaft high efficient mixer SSHJ.4 30
4. pelleting section
404 vibration pneumatic hammer
407 Pellet machine SZLH420 220.00
409 counter-current cooler SKLN6 3.0
410 crusher SSLG20×170  30
416 classic sieve SFJH125 6
5. packing section
507 automatic packing scale SDBY-P
508 seal conveyor machine TFKB40 6
513 pulse dust collector TBLFa.30
6.auxiliary system
602 storage air tank
603 Dryer
604 liquid adding machine SYTV63 3.00
606 Steam boiler system 2T
