Dry Aquatic Sinking / Floating Fish Feed Production Line

  • Type: Floating Fish Feed Production Line

  • Opetation type Automatic

  • Warranty: 1 year

We're here to help:

Easy ways to get the answers you need.

(※ Click this button to inquiry)
Follow Us :
| share: Bookmark and Share
  • fish feed production line
  • Floating Fish Feed Plant For Sale
  • floating fish feed production plant
  • fish feed production plant
  • floating fish feed making plant
■ Description

 Hot Floating Fish Feed Production Line



Introduction Of Fish Feed Production Line



This fish feed production line is newly developed to meet the demand of intensive production of animal fish feed pellets. With many specifications this production line can produce floating fish feed, pet feed, livestock feed, etc. The products can have different shapes, unique flavor, rich nutrients and fine texture to meet the different eating habit of animals. Super automation control and high production efficiency, our fish feed production line is the best choice for medium and big sized feed mills and breeding farms. Our fish feed production line can produce various kinds of pellets for different varieties of fishes including Halibut pellets, Catfish pellets, CatCarp pellet, Trout pellets, Hemp pellets, CSL pellets,etc.



floating fish feed



Why choose Floating Fish Feed Pellet Plant



1. Wide applicable scope: this production line can produce floating fish feed, sinking fish feed, pet feed, livestock feed, etc.
2. Best-selling worldwide: Our fish feed pellet plants are hot selling in Nigeria, Malaysia, Australia, India, Sri Lanka, South Korea and so on.
★ Smooth operation
★ Easy installation
★ Cost-efficient
★ Long life



Details of Fish Feed Plantfish



●Raw materia lThe feed pellets include animal protein and plant protein. Plant protein comes from corn, rice, wheat, soybean, peanut cake powder, etc; Animal protein is from fish meal, shrimp meal, crab meal, sleeve-fish meal and so on you can add other ingredient according to requirements and eating habits of animals.

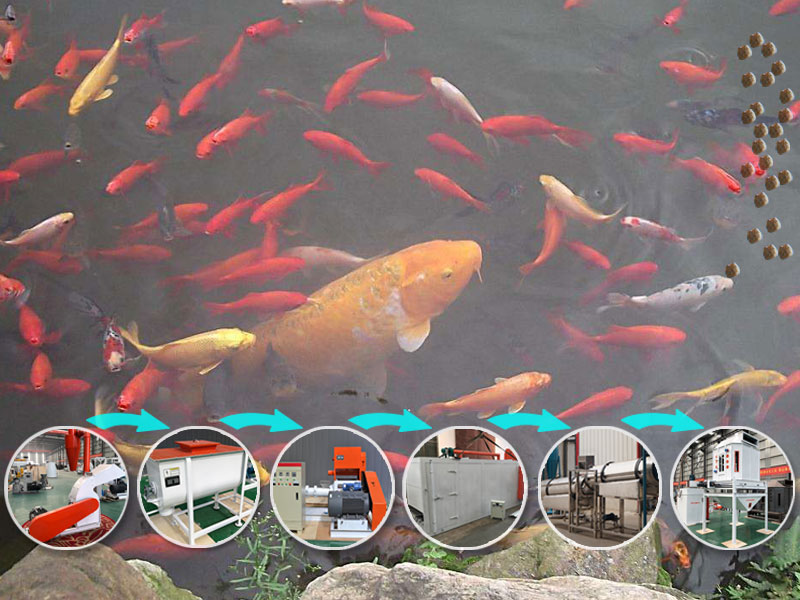

●Mainly Involved processes:Material grinding, material mixing, pellets extruding, pellets drying, and pellet packing. The whole process can be highly automatically controlled.



Related Machines of Fish Feed Production Line



1.Material grinding---- feed hammer mill

Raw material ingredients should be grinded to the required size by feed grinder.

2. Material mixing---feed mixer

Mixing the material thoroughly can ensure extruding efficiency and improve the feed quality. We supply two kinds of feed mixers for you to choose: double-shaft efficient mixer can be applied to mixing powdery, granular, flaky and blocky materials while feed ribbon type mixer is mostly used for mixing powdery materials. These two kinds of mixers can be customized with atomizing spraying system which will add liquid like molasses and grease to material more evenly.

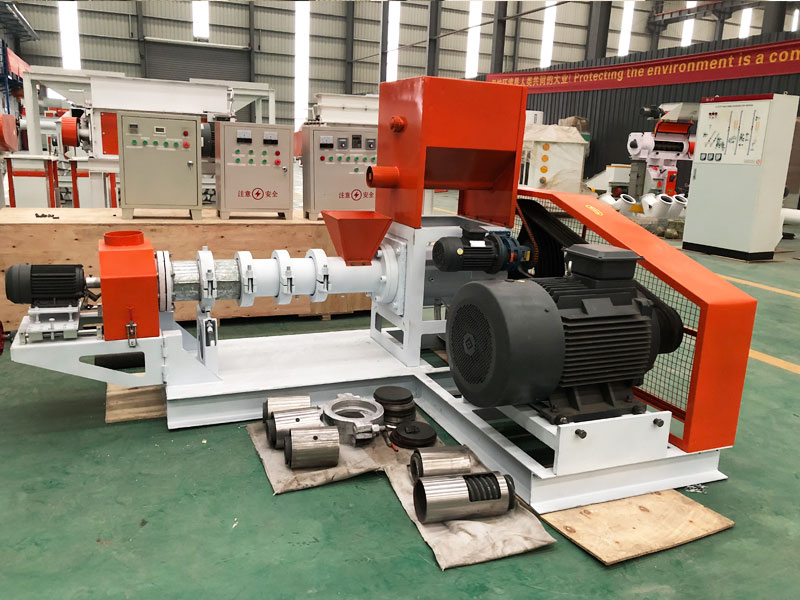

3. Extruding process--- floating feed pellet extruder

Our fish feed pellet machine can be divided into two types: dry type fish feed machine and wet type feed machine. The wet type is with the conditioner and need to equip the steam boiler. The dry type fish feed extruder is cheaper while the capacity of the wet type fish feed extruder is higher, so usually the wet type fish feed extruder is suitable for large feed pellet factory and the dry type fish feed extruder is better and economic for the small and medium size user or factory.

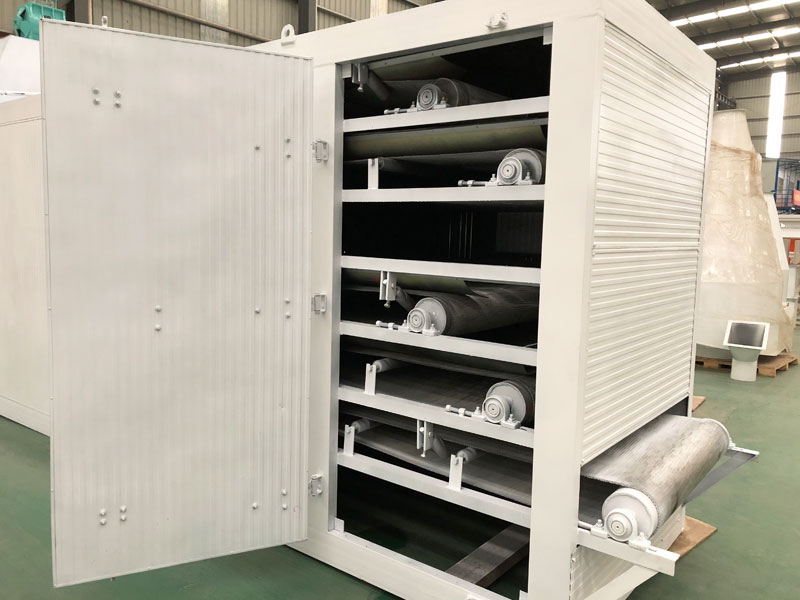

4. Pellets drying---feed pellet dryer 

Our mesh belt dryer is a continuous convective belt dryer. Pellets formed through the extruder are stacked in layers on a wire mesh or perforated plate belt conveyor and conveyed continuously through drying chambers. During this process, the drying air is passed repeatedly through the products layer until pellets have the optimum moisture content before leaving the dryer. While if you choose wet type fish feed machine, we recommend the gas type pellet dryer.

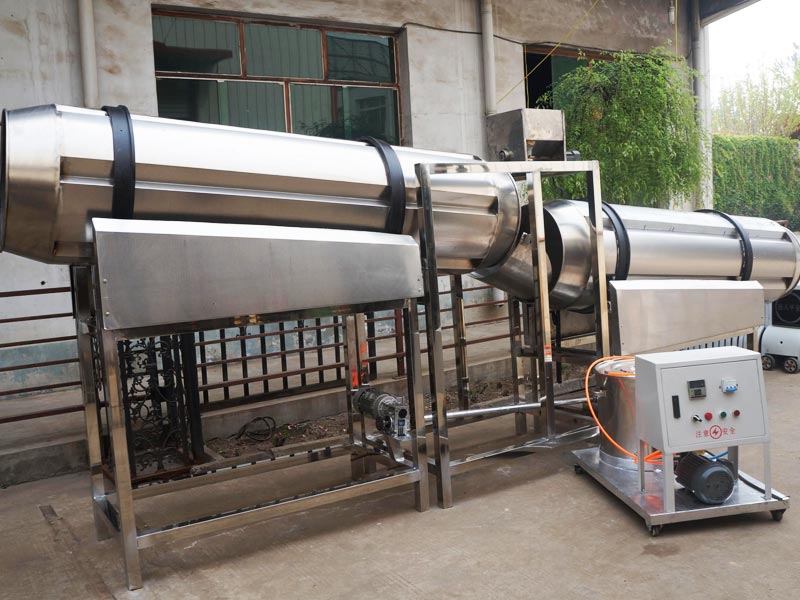

5. Fish feed spraying oil -sprayer fish feed spraying oil machine
Our fish feed oil spraying machine adopts the developed vacuum spraying technology that some easily damaged components of the feed are added by using specific method in the post-production. It is a new spraying technology used in fish feed processing that can prevent the easily broken components from damaging and solve the problem of nutrition loss and medicine cross contamination.

6.Pellet Cooling-feed pellet cooler

Feed pellet cooler is used to cool the hot and moisture feed pellets(if your production capacity per day is not so much, you will not need this pellet cooler, just dry the pellets in the sun is OK.)





7. Pellet packing---packing machine

To make the finished pellets easy to store, transport and catch the clients’ eyes, they should be packed properly. With our weighing and packing machine, the finished pellets can be packed into bags, weighed, conveyed, and sealed automatically, which saves labor and time greatly and meet the requirements of large scale production. For this packing machine, automatic heat typing code, automatic bag sewing and automatic thread cutting can be optional functions.








■ Features

Features of Fish Feed Production Line

contact Strongwin pellet machine factory

1. Advanced technology, high capacity and low energy consumption.
2. The feed pellet line occupies less floor space and needs low investment in construction work. The modular structure is convenient for assembly and disassembly, facilitating the shipment and installation.
3. Automatic controlled, alarm device is available. The operation is simple and convenient.
4. Wide applicable scope: The plant can produce both floating and slow-sinking fish feed, applicable for fish farm holders and fish feed manufacturers.



■ Parameters

Our floating fish feed production line is customized,Please contact us and tell us what capacity you need.And then we will send you the suitable model machine quotation.



Now visit our 5t/h animal feed production line,5t/h cattle feed pellet production line,5t/h chicken feed production line,5t/h poultry feed production line,sink fish feed production line,pet feed production line,of course,you can customize the feed pellet plant that you need,so inquire us more detail and tell us what you need, take action now.
