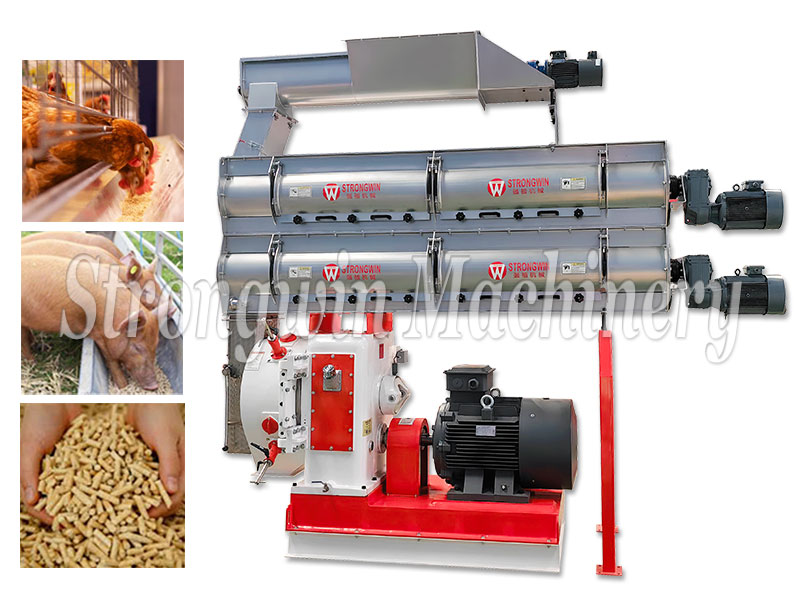

Poultry Pellet Feed Machine
Animal Feed Pellet Machine
Livestock Feed Pellet Machine
feed pelletizing machine
Poultry Pellet Feed Machine
Animal Feed Pellet Machine

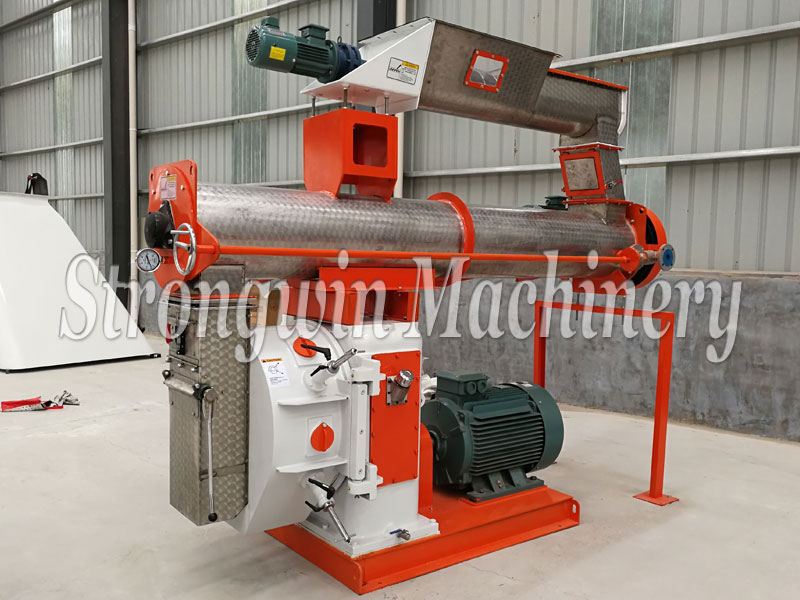

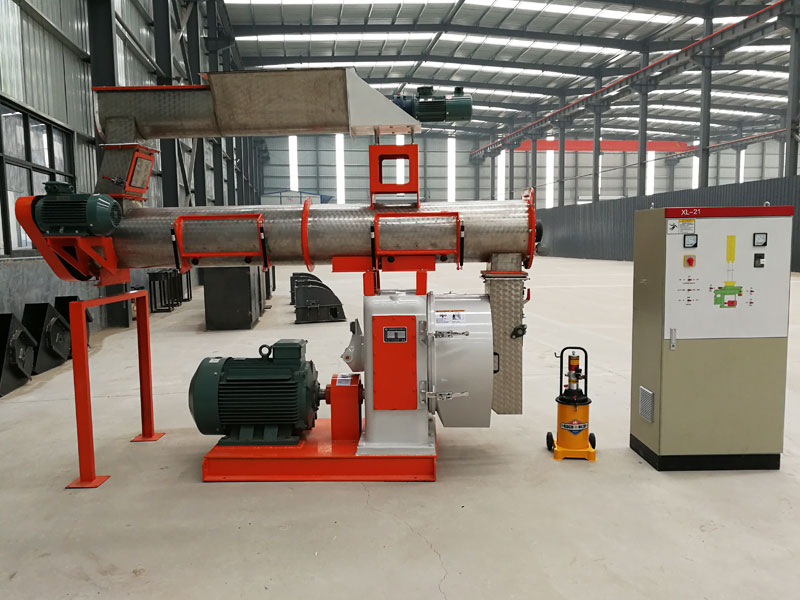

Animal Feed Pellet Press SZLH420

Model
SZLH420
Capacity
4-12t/h
Main motor power
110kw
Conditioner power
5.5kw
Feeder power
1.5kw
Ring die diameter
420mm
Share With :
Description
Features
Parameters
Inquiry

Description

Ring Die Feed Pellet Mill( Feed Pellet Machine/Pellet Press) SZLH420
America CPM Model animal feed pellet machine, High-strength precision gear drive, Transmission efficiency can be as high as 99%, The normal belt transmission efficiency of 90% -95%, and easy to slip loose, life is short when the belt becomes loose, transmission efficiency will drop a lot, in normal with the same power,gear drive Pellet machine output should be increased by 20% -30% than the belt drive
Efficient
Stable
low noise
High Yield
Low consumption
Mature Technology
Detailed instructions for SZLH420 animal feed pellet making machine

Our feed pelletizing solutions feature great flexibility. According to different feed types, different output configurations can be customized. There are great after-service and pelletizing solutions. If you are intended to start your business to make feed pellets on a small or large scale, please do not hesitate to contact us for details.
The feeder spindle, screw, sleeve, and paddle are 304 stainless steel, the bearing is Japan FYH brand, longer life.
Feeding motor we choose the Inverter Siemens motor, which is the same as Buhler (Buhler) brand pellet machine, the quality should be slightly better than the Siemens Motor and Wannan motor, the motor noise is lower, the operating current is more stable Overload capacity stronger!
Conditioner motor pulley using high strength cast steel black pulley, higher strength, higher precision, higher strength after heat treatment, more wear-resistant, longer service life, pulley balancing experiments run more smoothly, using a locking sleeve Installation, installation and removal convenient and time-saving, and will not cause damage to the pulley!
The conditioner spindle, paddle, bolt, and wall tube are 304 stainless steel, Motor is a Siemens motor
The machine can make pellets for poultry, cow, cattle, pig, chickens, and so on.
Application: for making cattle, geese, pig, duck, chicken, sheep, rabbit, and other animals, livestock, and poultry feed.Such as 2-4mm diameter chick feed pellets and pig feed pellets.2-5mm rabbit feed pellets, 4-8mm cattle or sheep feed pellets. The last pellet length can be adjusted.
A

After installation and adjustment, we will train our customer's work how to operate;
B

Training workers on how to maintain and protect
C

According to features, we will make complete maintenance rules for you, containing how to maintain, when to maintain, and who maintains)
D

Our company after-sales department will call you at regular intervals, ask if maintain and give advice





Features

Feed Pellet Mill Firm Structure SZLH420 feed pellet machinery

1

Host bearings generally use the top ten brands in the world of NSK (Japan), and SKF (Switzerland) bearings, reliable quality, and long service life!
2

In the rear of the pellet machine has a protection switch device, when the spindle bearing and spindle lock, the power can be cut off in time, and the spindle has an effective protection effect!
3

The feeder spindle, screw, sleeve, and paddle are 304 stainless steel, the bearing is SKF brand, longer life.
4

We can customize double or three-layer conditioners for clients.
5

The gap between the paddle and the bottom is less than 4mm, and the material basically has no residue, no manual cleaning residue, but other manufacturers are generally 8-10mm, with more material leftovers, If the labor can not be timely clean-up, material cross-contamination if for a long time production is also easy to pests!


Super quality of Henan Strongwin Feed Pellet Mill



The material thickness of the main equipment is more than the feed machinery standard 2mm;
The weight is heavier than feed machinery by 20%.
Output higher 20%;
The feed rate of return increases by 3-5%.







Parameters

Model SZLH420
Main motor power 110kw
Conditioner power 5.5kw
Feeder power 1.5kw
Ring die diameter 420mm
Capacity 4-12t/h
Finished pellet size 1.5-12mm
