SW Feed Hammer Mill

Model
SW
Capacity
200-2000kg/h
Power
2.2-22kw
Hammer raw material
Alloy steel
Application
Corn, sorghum,beans etc.
Installation
Offer manual book and engineer's guidance
Share With :
Description
Features
Parameters
Inquiry

Description

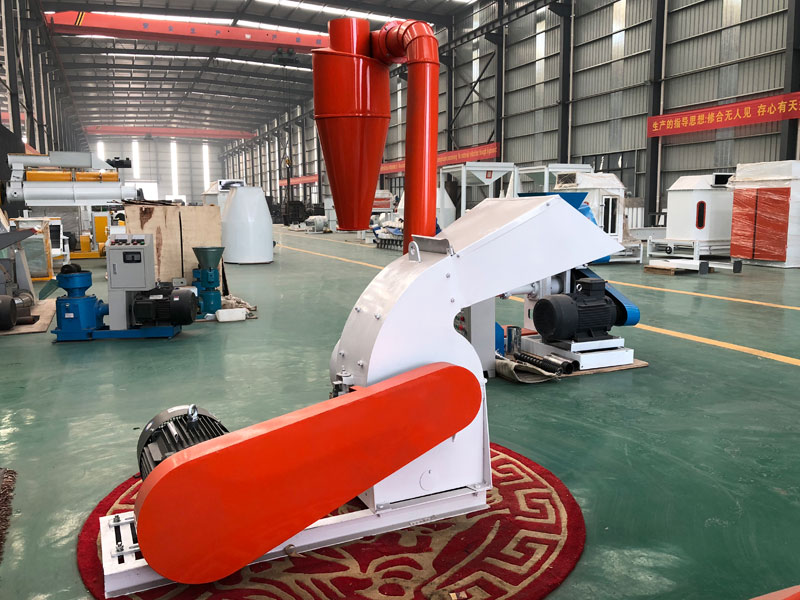

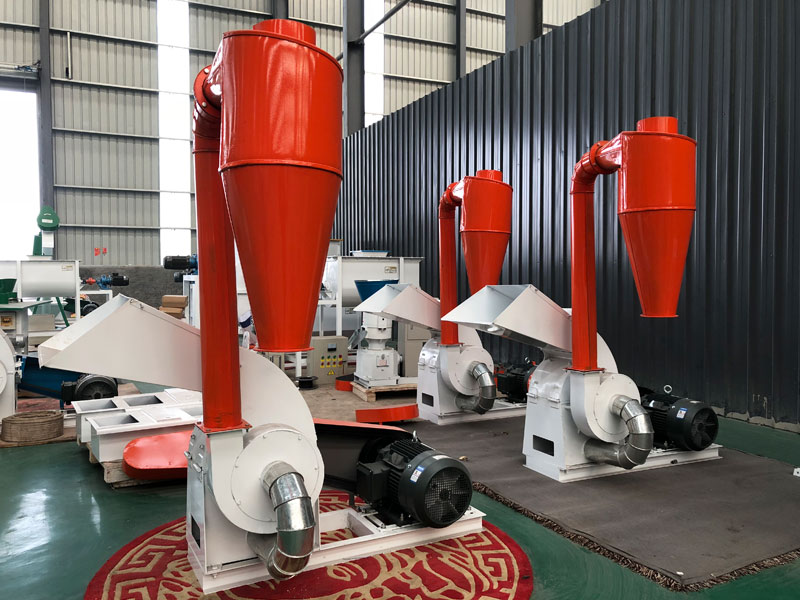

SW Feed Hammer Mill
Feed Hammer Mill is specified feed grinding machinery which is designed and invented for many years according to the demand of industrial production development.It has the advantages of reasonable design, compact structure, safe,  wear-resistant, simple structure, compact assemble, low price, reliable performance, low power consumption, high capacity, good quality of final products, and low production cost, etc.It is combined with cutting and grinding, it can cut and grind branches and limbs which diameter between 10 to 200mm, meanwhile.
Simple Structure
Compact Structure
Safe
Low Power Consumption
Reliable Performance
Convenient Operation
Detailed instructions of SW Feed Hammer Mill

With a capacity of 200kg---2000kg/h, this hammer mill can satisfy a large production demand daily.
The core part ---the hammer flake is scientifically designed to have two concussion parts, thus when one part is worn out, you can turn over to use the other part.
Both coarse and fine grinding can be realized by adjusting the gap between hammers and the screen.
The ability to change screen size, and the option of a variable speed frequency drive control, enable processing a variety of materials using the same hammer mill.
Equipped with an air blower, the crushed material can be directly collected and transported to the next machine for further processing.
Application

mainly used for various granular raw materials, such as corn, sorghum, wheat, bean, straw, rice straw, alfalfa, peanut shells, peanut vine, cottonseed skin, and other one-off pieces. and others.
A

After installation and adjustment,we will train our customers work how to operate;
B

Training worker how to maintain and protect
C

According to features, we will make complete maintenance rules for you, containing how to maintain, when to maintain, and who maintains)
D

Our company after-sale department will call you at regular intervals, ask if maintain and give advice.

Features

SW Feed Hammer Mill Features

1

High ratio of crushing
2

Equal product granularity
3

Simple structure, easy operation
4

Convenient requirement
5

Low consumption
6

Working by diesel engine or motor



Super quality of Henan Strongwin Small Feed Crusher Machine



Material thickness of main equipment is more than feed machinery standard 2mm;
The weight is heavier than feed machinery by 20%.
Output higher 20%;
The feed rate of return increases by 3-5%.

Parameters

Model Power Spindle speed Capacity Dimension Weight
SW350 2.2kw   80-200kg/h 750*500*800mm 90KG
SW360 4kw 4600r/min 150-300KG/H   170/190KG
SW400B 7.5kw 3200r/min 200-500KG/H 1100*900*1200mm 200/230KG
SW420B-7.5 7.5kw 3200r/min 200-700KG/H 1200*1000*1220mm 230/260KG
SW420B-11 11kw 3200r/min 300-700KG/H 1650*820*1200mm 290/340KG
SW50-28 15kw 3300r/min 800-1700kg/h 1800*900*1120mm 540KG
SW50-40 22kw 3400r/min 900-2000kg/h 2000*1100*1320mm 680KG
