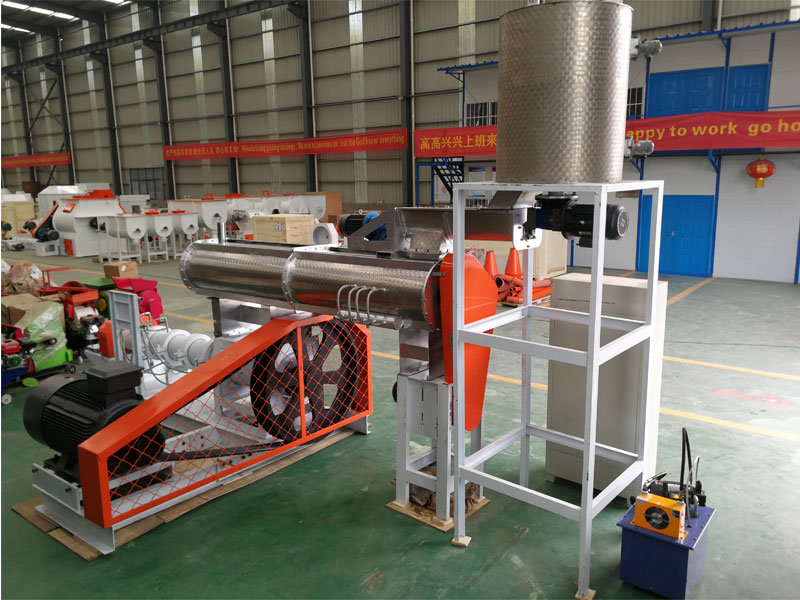

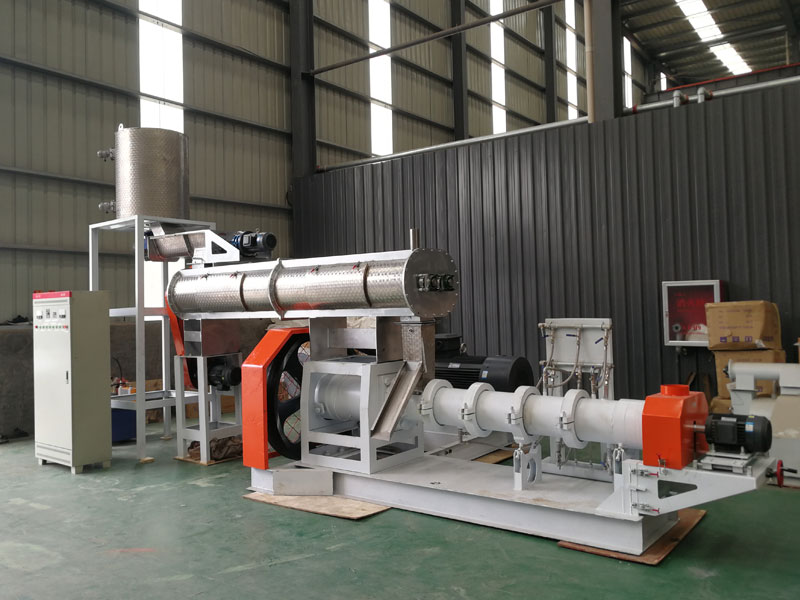

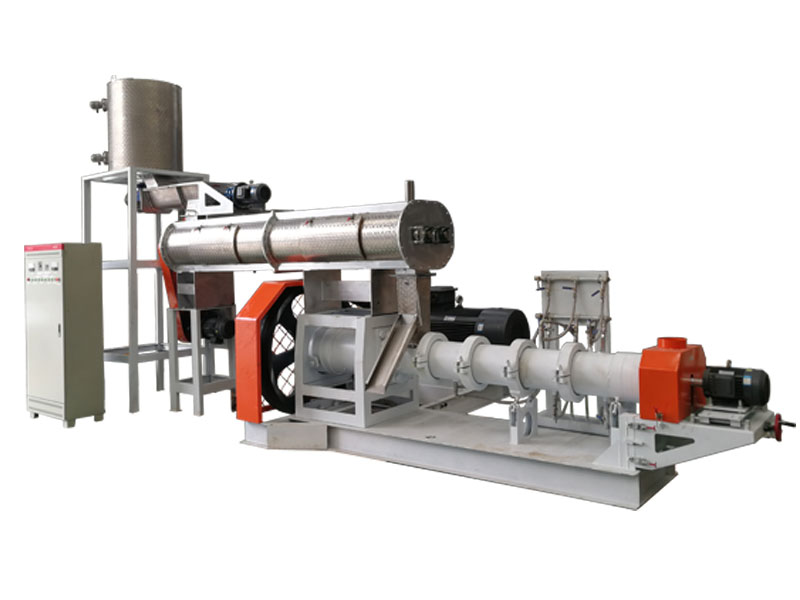

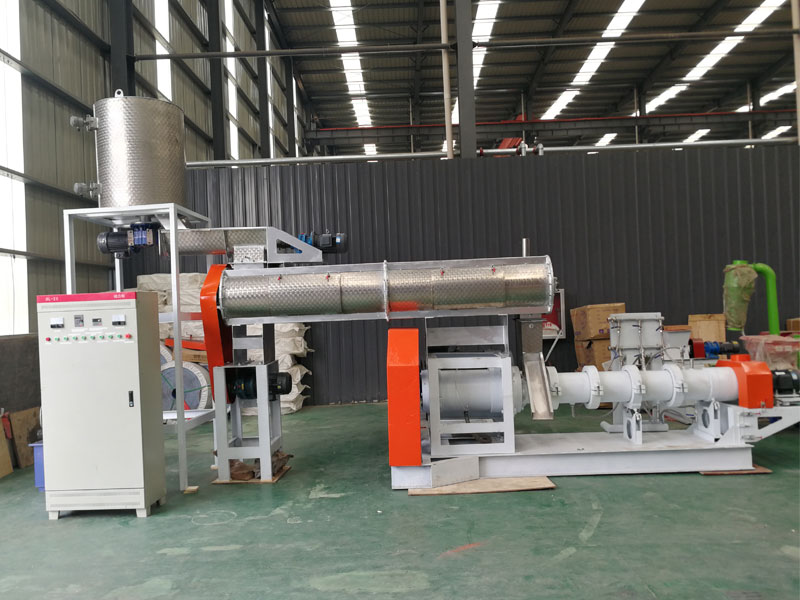

Wet type DSP Fish Feed Extruder Machine

  • Type: DSP90-III Wet type fish feed extruder

  • Capacity: 0.50-0.60t/h

  • Main power: 37kw

  • Feeding power: 1.1kw

  • Cutting power: 1.1kw

We're here to help:

Easy ways to get the answers you need.

(※ Click this button to inquiry)
Follow Us :
| share: Bookmark and Share
  • floating fish feed machine
  • floating fish feed making machine
  • floating fish feed extruder
  • fish feed manufacturing machinery
  • fish feed extruder machine
■ Description

Wet type fish feed machine is widely used for producing grains into high-grade aquatic feed pellets for many kinds of pet like fish, catfish, shrimps, crab, cat, dog and etc. Grain materials employed in fish feed pelletizer are such as wheat, soybean, cake and other leftovers and etc., moreover puffing pellets produced by the pellet machine can float on the water surface without dissolution for over 12 hours. Wet type feed extruder is mainly employed in medium or large size feed processing factory and aquaculture farm. For large scale production of quality pellets, it is profitable to opt wet type feed pellet machine!

Difference between Dry Type and Wet Type Extruder
1. Dry type fish feed extruder does not need the steam boiler, so the dry type fish feed pellet machine is cheaper and easier to use and operate.
2. The feed pellet made by wet type fish feed pellet machine is more smooth and with better quality because the material is ripen and mixed enough in the conditioner compared with the dry type extruder.
3. The capacity of the dry type feed pellet machine is lower than the wet type fish feed pellet machine, so usually the dry type fish feed pellet machine is better and economic for the small and medium size user or factory.

■ Features



Features of Wet Type fish feed extruder machine

contact Strongwin pellet machine factory 1.Boiler continuously offer hot steam into the conditioner, so materials can be fully cooked and the nutritional value is improved. Thus the quality and quantity of pellets can be improved greatly with lower power consumption.
2.High temperature and high pressure process can kill the salmonellosis and bacterial infections and also makes the pellets easily to digest.
3. Key parts are processed through vacuum quench treatment with high processing precision, thus have a long service life.
4. Screw sleeve adopts jacketed construction, which can be injected in with hot steam or cooling water, thus the extruding temperature can be controlled effectively.
5. Single-screw extrusion cooking: capable of high production capacities; variable screw speeds.
6. Key parts are processed through vacuum quench treatment with high processing precision, thus have a long service life.
7. You can change different molds to make pellets with different diameters.

fish feed production plant









■ Parameters

Mode

Capacity t/h

Main

power kw

Feeding

power kw

Screw

diameter mm

Cutting

power kw

Conditioning

power kw

DSP60-III

0.18-0.2

15

0.4

60

0.4

0.75

DSP70-III

0.25-0.28

18.5

0.75

70

0.6

1.5

DSP80-III

0.30-0.40

22

1.1

80

1.1

1.5

DSP90-III

0.50-0.60

37

1.1

90

1.1

2.2

DSP120-III

0.70-0.80

55

1.1

120

1.1

2.2

DSP135-III

1.0-1.2

75

1.5

135

2.2

3.0

DSP160-III

1.8-2.0

90

2.2

155

2.2

4.0

DSP200-III

3.0-4.0

132

2.2

195

3.0

5.5
