Bucket Elevator
conveyor
Bucket Elevator for Chicken Feed Pellet Line
Bucket Elevator
Bucket Elevator
conveyor
Bucket Elevator for Chicken Feed Pellet Line
Bucket Elevator
Bucket Elevator
conveyor
Bucket Elevator for Chicken Feed Pellet Line
Bucket Elevator

Bucket Elevator

Model
Bucket Elevator
Feature
Low Consumption,Less residue
Operation
Simple Automatic Operation
Share With :
Description
Features
Parameters
Inquiry

Description

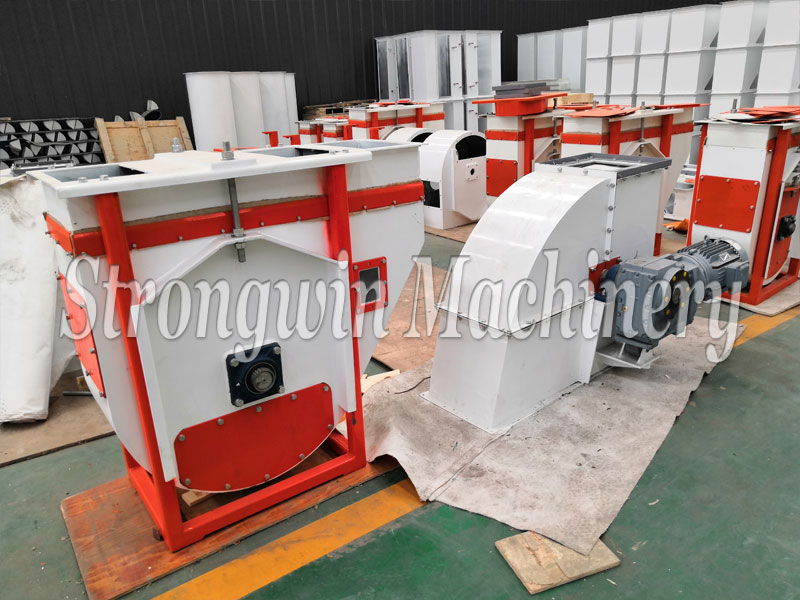

TDTG Bucket Elevator
Bucket elevator is independently developed by Strongwin and is a fixed installation mainly used for the vertical continuous conveying of powdery materials or granular materials. The equipment is of straightforward structure, compact design, good sealing performance, easy installation, and maintenance, allowing positive and reverse material feeding, as well as flexible process configuration and layout.
Efficiency
Affordable
Customizable
Fixed installation
Compact design
Good Sealing Performance
Application of TDTG Bucket Elevator

The vertical bucket elevator is the ideal type of conveyor for vertical handling of bulk materials and design for conveying the power, grain, and block materials, such as coal, cement, block, sand, clay, and ore.
The bucket elevator is allowed to convey materials with high temperatures when armed with a special circle chain structure.
It has the advantages of low lifting speed, less mill stock, convenient dislodging ultra-low processing wastage, and auto-tensioning of the dustpan belt.
Application

Suitable for conveying materials that are difficult to break and grade.
A

After installation and adjustment, we will train our customers to work how to operate;
B

Training worker how to maintain and protect
C

According to features, we will make complete maintenance rules for you, containing how to maintain, when to maintain,  and who maintains)
D

Our company after-sale department will call you at regular intervals, ask if maintain and give advice.

Features

TDTG Bucket Elevator Features

1

It uses high-quality rubber.fireproofing,wear-resisting.
2

It can prevent dust explosion effectively safety.
3

With the patent technology.it can prevent blocking.
4

The machine barrel uses advanced craft, so it's high quality and the tightness is good .
5

It's weight little,wear-resisting, and well tightness.
6

Low elongation with special material, wear-resisting.
7

Selt-cleaning engine base uses variable circular plates.
8

The engine base.Can assemble feed hopper with two directions according to different requirements.
9

Stand base tensioning device adopts gravity tensioning or screw tension.
10

You can assemble an automatic alarm system and speed monitoring system.


Super quality of Henan Strongwin TDTG Bucket Elevator



Material thickness of main equipment is more than feed machinery standard 2mm;
The weight is heavier than feed machinery by 20%.
Output higher 20%;
The feed rate of return increases by 3-5%.

Parameters


 Model

TDTG26/18

TDTG36/18

TDTG36/23

TDTG36/28

TDTG40/23

TDTG50/23

Capacity T/h

3-6t/h

6-15t/h

10-20t/h

15-30t/h

25-35t/h

30-50t/h

Power Kw

2.2kw

4kw

4/5.5kw

5.5/7.5kw

11kw

15kw
